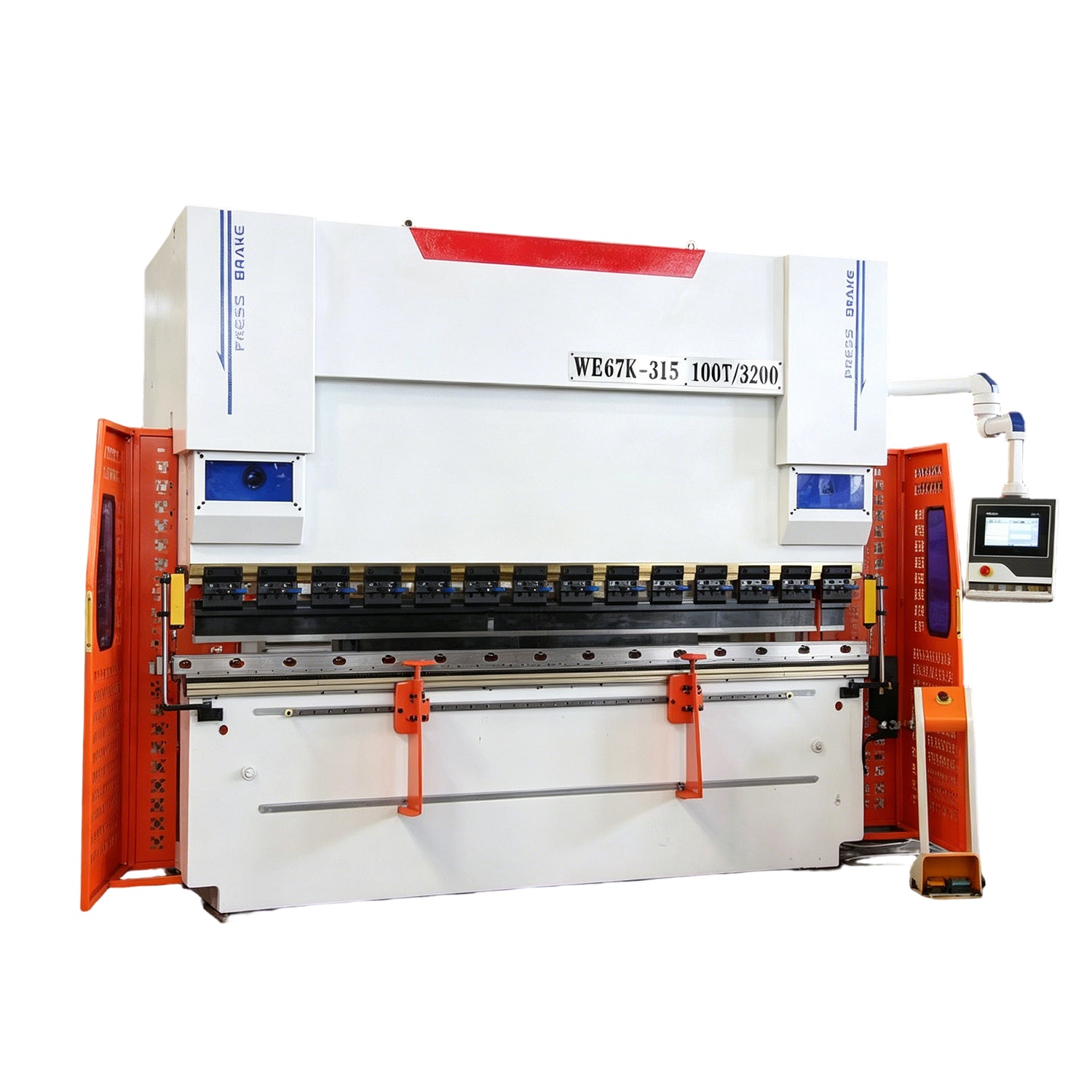

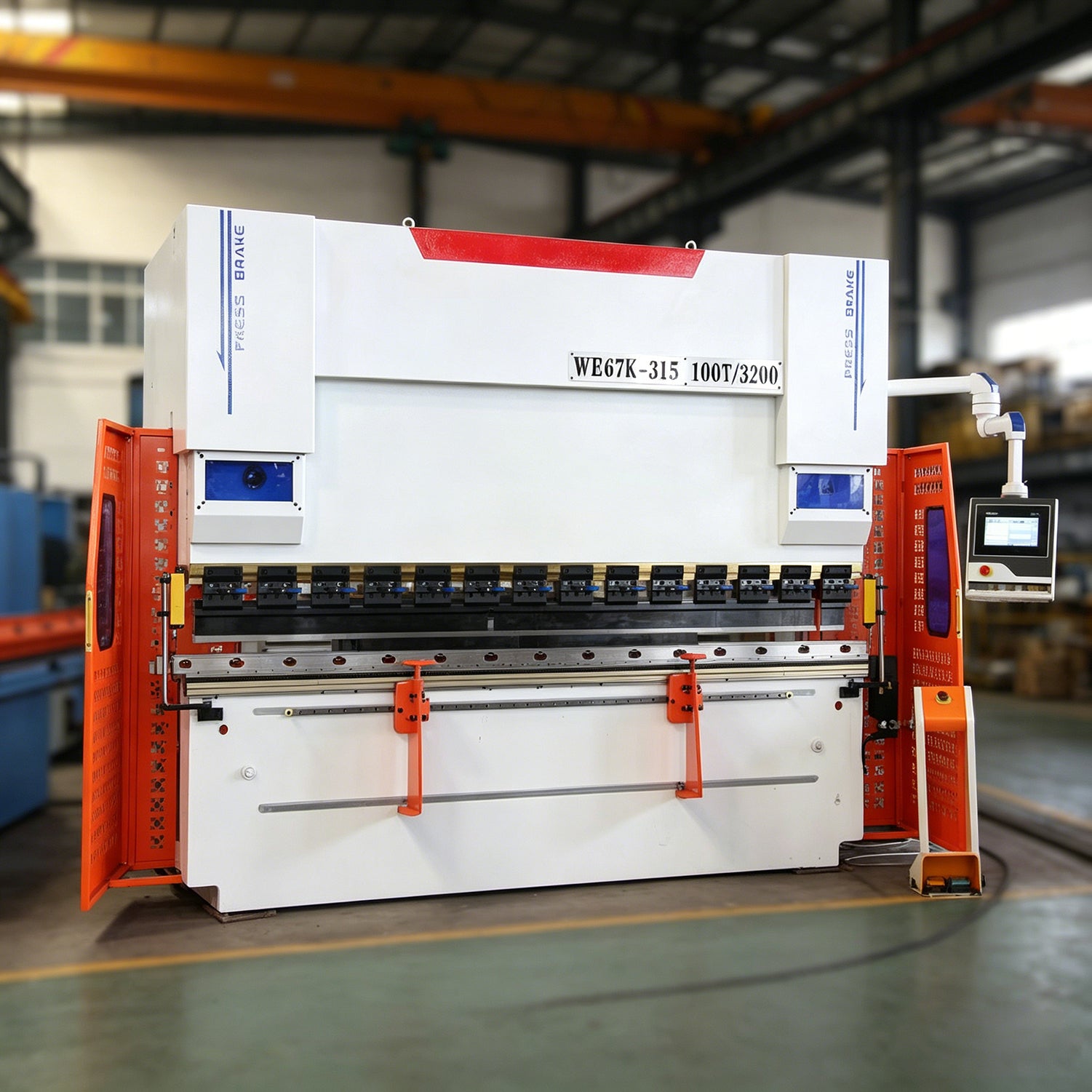

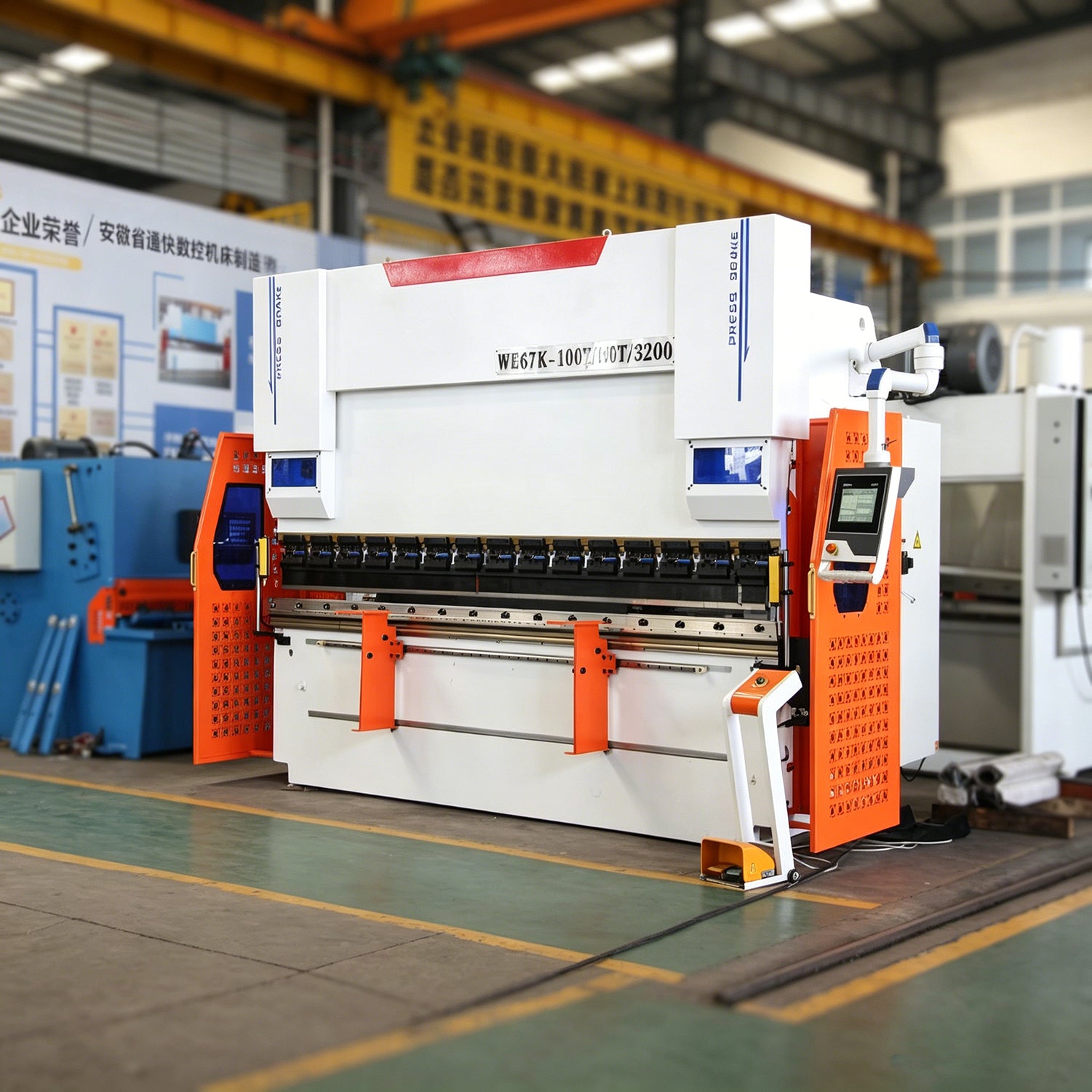

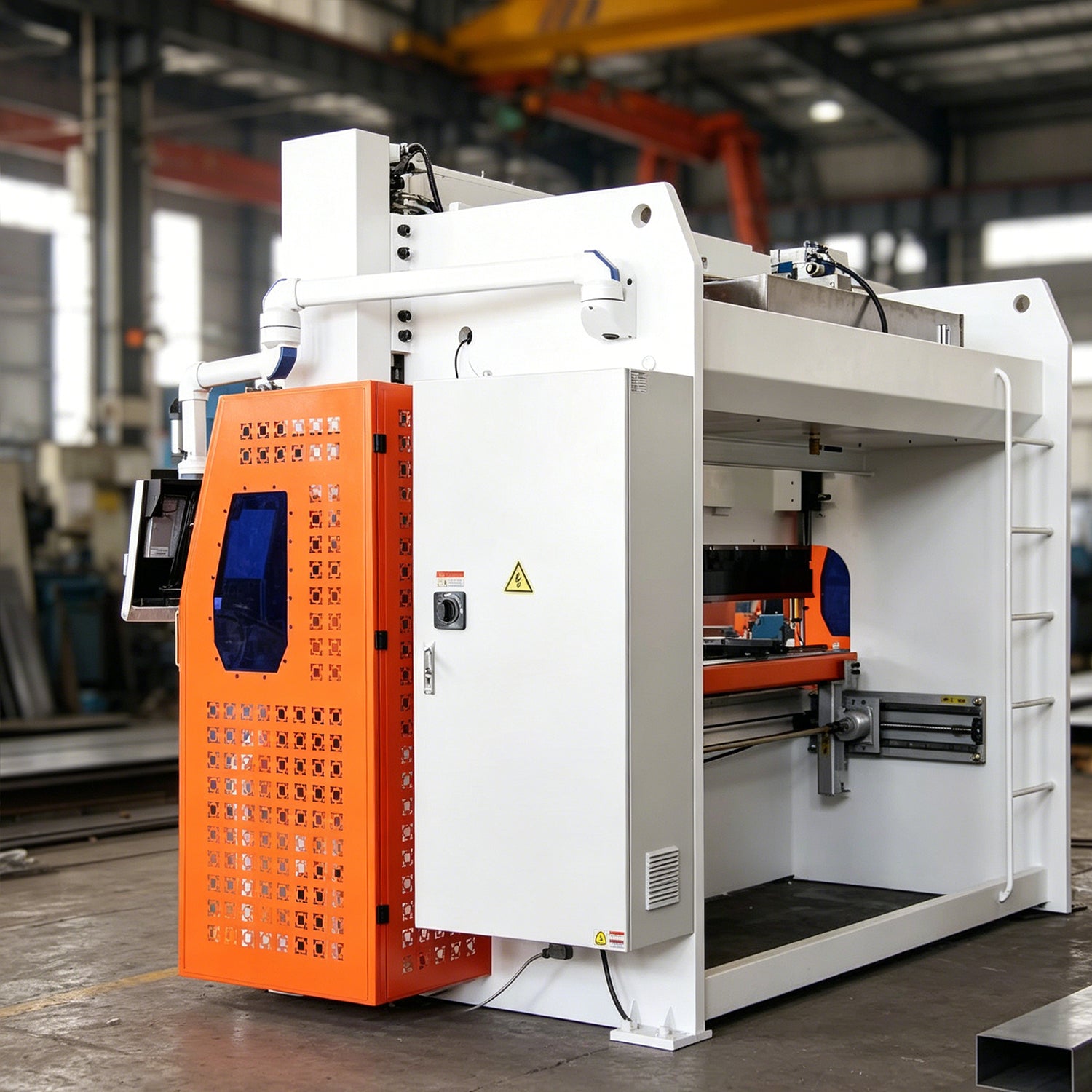

High-precision CNC press brake for sheet metal bending. Heavy-duty construction, advanced hydraulic system, and reliable performance for industrial fabrication.

CNC-controlled hydraulic system ensures ±0.05mm bending accuracy for consistent, repeatable results on every workpiece.
All-welded steel frame with stress-relief treatment provides exceptional rigidity and long-term stability under high loads.
Proportional hydraulic valves deliver smooth, controlled ram movement for precise angle control and reduced shock load.
100-ton pressing force and 3200mm working length handle thick plates and long workpieces with ease.
Intuitive touchscreen interface with programmable backgauge and angle presets for rapid job setup and changeover.
High-quality components and self-lubricating bearings reduce maintenance needs and ensure long service life.


Intuitive touchscreen interface with programmable bending sequences, angle presets, and real-time diagnostics for efficient operation.

Precision-ground bending tools with long service life, quick-change design for rapid setup, and compatibility with standard tooling systems.

High-accuracy servo-driven backgauge with digital readout ensures consistent positioning and repeatable bending results.

Proportional valves and high-efficiency pump provide smooth, reliable power with energy-saving operation and low noise.

Multiple V-die options and segmented tooling allow bending of various thicknesses and materials with minimal changeover time.

All-welded steel frame with stress-relief treatment ensures maximum rigidity, stability, and accuracy over decades of use.

Capable of bending mild steel, stainless steel, aluminum, and other metals with precision and consistency.

Designed for continuous operation with reliable performance, making it ideal for mass production and job shop environments.

Easy-to-use clamping system allows fast die and punch changes, reducing downtime and increasing productivity.

Multilingual touchscreen with graphical programming, job memory, and real-time angle feedback for operator convenience.

Achieve sharp, accurate bends with minimal spring-back and distortion, ensuring high-quality finished parts.

Compact footprint and robust design make this press brake suitable for small workshops to large industrial facilities.

Advanced hydraulic control and rigid frame construction ensure consistent bending angles and repeatable results.

100-ton capacity enables bending of thick steel plates for structural and industrial applications.

Compatible with robotic loading/unloading systems for fully automated bending cells.

Built-in angle measurement and reporting tools ensure every part meets specification.

Designed for continuous, high-demand industrial environments with minimal maintenance.

Every machine undergoes rigorous quality control and testing before shipment.

Delivered with full tooling, installation support, and operator training.
| Model | BOCTECH PB-100T/3200 |
|---|---|
| Pressing Force | 100 Tons |
| Working Length | 3200 mm |
| Ram Stroke | 150 mm |
| Max. Opening Height | 400 mm |
| Throat Depth | 300 mm |
| Bending Accuracy | ±0.05 mm |
| Backgauge Stroke | 600 mm |
| Max. Bending Speed | 8-12 mm/s (adjustable) |
| Control System | CNC with Touchscreen (Multilingual) |
| Motor Power | 7.5 kW |
| Power Supply | 380V / 50Hz, 3 Phase |
| Dimensions (L×W×H) | 3500 × 1700 × 2600 mm |
| Net Weight | Approx. 7500 kg |
Complete technical data for CNC press brake machines. Available in capacities from 63 tons to 250 tons with bending lengths from 2500mm to 4000mm.
| Parameter | BCT-63/2500 | BCT-100/3200 | BCT-160/3200 | BCT-200/3200 | BCT-250/4000 |
|---|---|---|---|---|---|
| Pressing Force | 630 KN (63T) | 1000 KN (100T) | 1600 KN (160T) | 2000 KN (200T) | 2500 KN (250T) |
| Bending Length | 2500 mm | 3200 mm | 3200 mm | 3200 mm | 4000 mm |
| Distance Between Columns | 2100 mm | 2600 mm | 2600 mm | 2600 mm | 3100 mm |
| Throat Depth | 320 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Ram Stroke | 150 mm | 200 mm | 200 mm | 200 mm | 250 mm |
| Daylight Opening | 420 mm | 460 mm | 460 mm | 480 mm | 550 mm |
| Approach Speed | 180 mm/s | 180 mm/s | 160 mm/s | 150 mm/s | 130 mm/s |
| Bending Speed | 8-12 mm/s | 8-12 mm/s | 8-12 mm/s | 8-12 mm/s | 8-12 mm/s |
| Return Speed | 150 mm/s | 150 mm/s | 140 mm/s | 130 mm/s | 120 mm/s |
| Main Motor Power | 5.5 kW | 7.5 kW | 11.0 kW | 15.0 kW | 18.5 kW |
| Backgauge Stroke (X-axis) | 600 mm | 600 mm | 600 mm | 600 mm | 800 mm |
| Control System | Delem / ESA / Cybelec CNC (selectable) with touchscreen | ||||
| Positioning Accuracy | ±0.01 mm (servo) | ||||
| Hydraulic Components | Rexroth valves / Sunny pump / Siemens motor | ||||
| Power Supply | 380V / 50Hz, 3 Phase (customizable) | ||||
| Standard Features | Auto crowning · Grating ruler feedback · Quick die clamping · Foot switch | ||||
Key Features: Welded stress-relieved frame · Servo-driven backgauge · Closed-loop positioning · CNC crowning compensation · Multi-axis control (Y1, Y2, X, R, Z, C) · Tooling library · USB offline data transfer.
Optional Upgrades: Full 6-axis (Y1/Y2, X, R, Z, C) · Automatic tool changing system · Robotic integration interface · Sheet metal support arms · Laser angle measurement.
